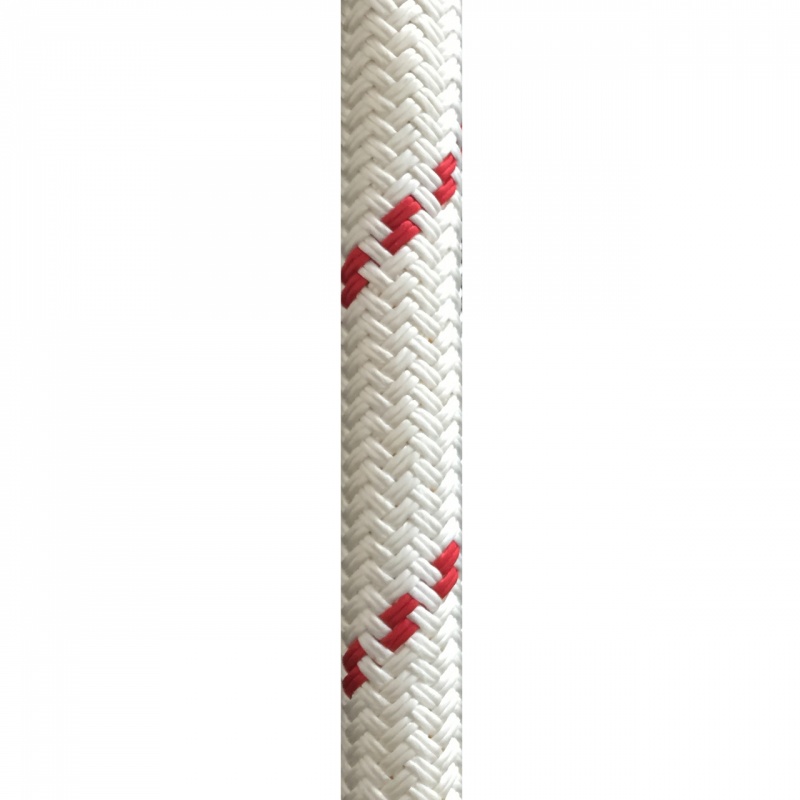

D-Tech Winchline Plus - With Polyester jacket

D-Tech Winchline Plus - With Polyester jacket

Made from HMWPE fibres and coated with a PRO-TECH self-unique impregnation that improves its abrasion resistance and fatigue properties, Cotesi D-Tech Winchline Plus must be considered when high breaking strengths are required. Stronger than steel wire ropes of same weight, has proven to be a cost-saving replacement in several applications. Double braided optimized construction to higher breaking loads, with a 12 strands HMWPE core and a 32 braids cover in Polyester.
  • Advantages
    • 1/7 of the steel wire weight;
    • Longer life time compared to steel wire
    • Low operational costs
    • Low elongation
    • Non kinking and non-rotating
    • Easy and safer handling
  • Applications
    • Mooring lines
    • Anchor line
    • Winch lines
    • Towing and Tug ropes
  • Tecnhical Informations
    • Raw material: Polyester
    • Specific Gravity: 1, 06 (non-floating)
    • Melting Point: 150C / 265C
    • Elongation at % of BS:
    25% . 0,9%
    50% . 1,6%

    Diameter Size
    Circ.
    Weight Breaking Load
    mm inches inches ktex Kg/100m lbs/100ft kgf lbf kN
    22   7/8 2 3/4 290 29 19,5 28.042 61.822 275
    24 1 3 340 34 22,8 33.141 73.062 325
    26 1  1/32 3 1/4 420 42 28,2 48.029 105.884 471
    28 1 1/8 3 1/2 483 48,3 32,5 55.983 123.418 549
    30 1 1/4 3 3/4 551 55,1 37 64.956 143.201 637
    32 1  5/16 4 700 70 47 75.051 165.457 736
    34 1 11/32 4 1/4 754 75,4 50,7 84.025 185.240 824
    36 1 1/2 4 1/2 808 80,8 54,3 92.998 205.023 912
    38 1  9/16 4 3/4 893 89,3 60 101.972 224.806 1000
    40 1 5/8 5 1000 100 67,2 116.248 256.279 1140
    42 1 5/7 5 1/4 1150 115 77,3 128.485 283.256 1260
    44 1 3/4 5 1/2 1250 125 84 140.721 310.232 1380
    46 1 3/4 5 1/2 1350 135 90,7 152.448 336.085 1495
    48 2 6 1480 148 99,4 164.175 361.938 1610
    52 2 1/8 6 1/4 1700 170 114,2 195.786 431.628 1920
    56 2 1/4 7 1900 190 127,7 230.457 508.062 2260
    *Other diameters available upon request.

    The technical characteristics stated are the result of a Cotesi development and are strictly indicative.
    We reserve the right to change them without prior notice. Tolerance in weights: 5%.
    Breaking load values stated shall be reduced by 10 % in the case of a rope with eye-spliced terminations. Produced and tested in accordance to the latest ISO standards.
