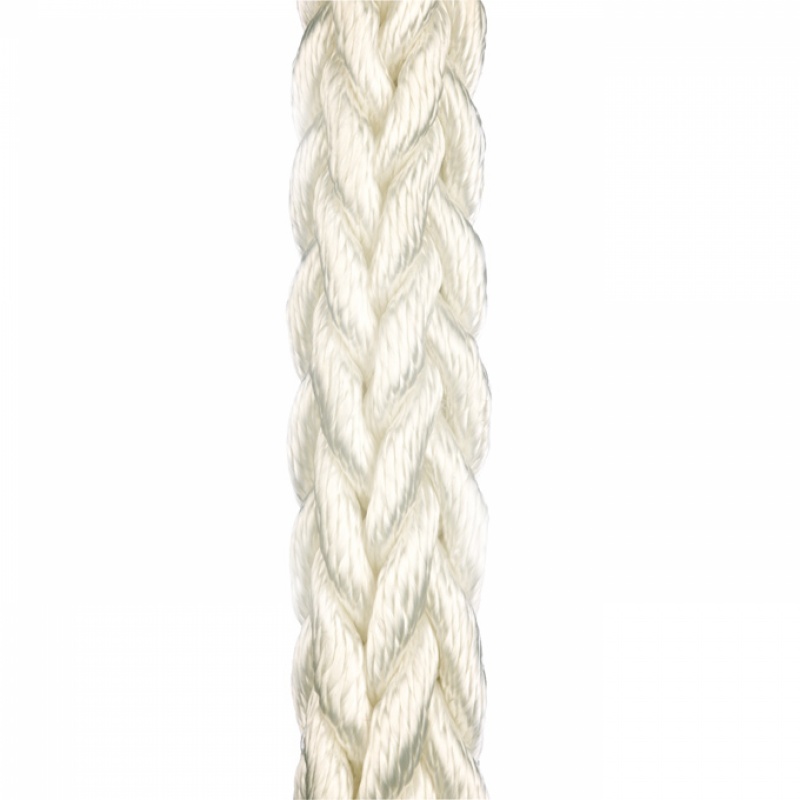

Polyester 12 strands

Polyester 12 strands

The smoothness and high tenacity characteristics of polyester are empowered by a construction enhancing its excellent abrasion and high heat resistance, creating a durable high tenacity rope with low elongation and excellent fatigue life. Polyester ropes do not absorb water, so they neither harden or lose strength when wet. Available in 12 strands, 8 strands, 4 strands and 3 strands.
  • Advantages
    • High heat and abrasion resistance
    • High strength and low working elongation
    • Excellent UV resistance
    • Flexible, non kinking and non-rotating
  • Applications
    • Mooring lines
    • Mooring pendants
    • Tug and towing lines
  • Technical Informations
    • Raw material: Polyester (HT)
    • Specific Gravity: 1,38 (sinks)
    • Melting Point: 265ºC
    • Elongation at % of BS:
    25% …. 5,0%
    50% …. 8,0%

    Diameter

    Size
    Circ.

    Weight

    Breaking Load

    mm

    Inches

    Inches

    Ktex

    Kg/100m

    lbs/100ft

    Kgf

    lbf

    kN

    24

    1

    3

    437

    43,7

    29,4

    9 687

    21 357

    95

    28

    1 1/8

    3 1/2

    595

    59,5

    40

    12 747

    28 101

    125

    30

    1 1/4

    3 3/4

    683

    68,3

    45,9

    14 276

    31 473

    140

    32

    1 5/16

    4

    777

    77,7

    52,2

    16 316

    35 969

    160

    36

    1 1/2

    4 1/2

    984

    98,4

    66,1

    20 394

    44 961

    200

    40

    1 5/8

    5

    1 210

    121

    81,3

    25 493

    56 201

    250

    44

    1 3/4

    5 1/2

    1 470

    147

    98,8

    30 592

    67 442

    300

    48

    2

    6

    1 750

    175

    117,6

    36 200

    79 806

    355

    52

    2 1/8

    6 1/2

    2 050

    205

    137,8

    43 338

    95 543

    425

    56

    2 1/4

    7

    2 380

    238

    159,9

    48 437

    106 783

    475

    60

    2 1/2

    7 1/2

    2 730

    273

    183,4

    54 045

    119 147

    530

    64

    2 5/8

    8

    3 110

    311

    209

    61 183

    134 884

    600

    72

    2 7/8

    9

    3 930

    393

    264,1

    76 479

    168 604

    750


    In accordance to ISO 1141:2021. More diameters available by demand.
    Breaking load values stated shall be reduced by 10 % in the case of a rope with eye-spliced terminations.
