Polyamide

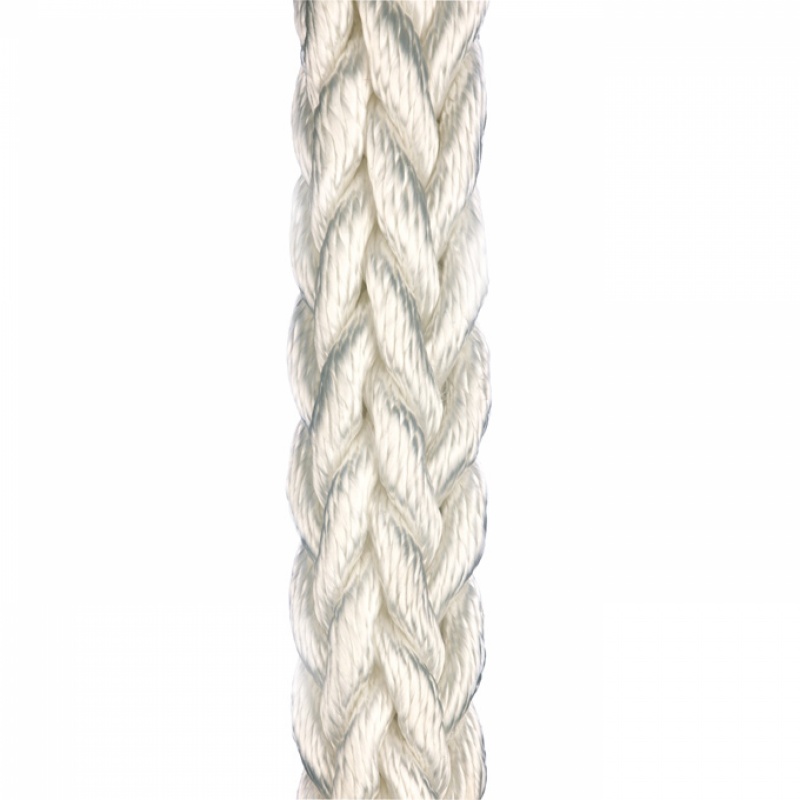

Polyamide ropes provides high breaking strengths while its high elongation works as an excellent energy absorber. Its very good abrasion and heat resistance is improved by the 12 strand round plait construction even in wet conditions, while the quality of fibers insure a perfect twist and lay tension reducing natural shrinkage during use.
-
Advantages
- Excellent shock mitigation
- Good abrasion and wear resistance in wet conditions
- Good UV resistance
- Flexible, non kinking and non rotating
-
Applications
- Mooring lines
- Towing lines
- Shock lines
-
Technical Informations
- Raw material: Polyamide
- Specific Gravity: 1,14
- Melting Point: 260ºC
- Elongation at % of BS:
25% …. 11,0%50% …. 18,0%Diameter Size
Circ.Weight Breaking Load mm inches inches ktex Kg/100m lbs/100ft kgf lbf kN 24 1 3 355 35,5 23,9 11.421 25.178 112,0 26 1 1/32 3 1/4 420 42,0 28,2 13.358 29.450 131,0 28 1 1/8 3 1/2 484 48,4 32,5 15.194 33.496 149,0 30 1 1/4 3 3/4 556 55,6 37,4 17.335 38.217 170,0 32 1 5/16 4 632 63,2 42,5 19.579 43.163 192,0 36 1 1/2 4 1/2 800 80,0 53,8 24.473 53.953 240,0 40 1 5/8 5 987 98,7 66,3 29.980 66.093 294,0 44 1 3/4 5 1/2 1190 119,0 80,0 35.792 78.907 351,0 48 2 6 1420 142,0 95,4 42.012 92.620 412,0 52 2 1/8 6 1/2 1670 167,0 112,2 48.845 107.682 479,0 56 2 1/4 7 1930 193,0 129,7 56.085 123.643 550,0 60 2 1/2 7 1/2 2220 222,0 149,2 63.936 140.953 627,0 64 2 5/8 8 2530 253,0 170,0 72.298 159.387 709,0 68 2 3/4 8 1/2 2865 286,5 192,5 81.374 179.395 798,0 In accordance to ISO 1140-2004Breaking load values stated shall be reduced by 10 % in the case of a rope with eye-spliced terminations.
