Combo 12 strands

Combo 12 strands

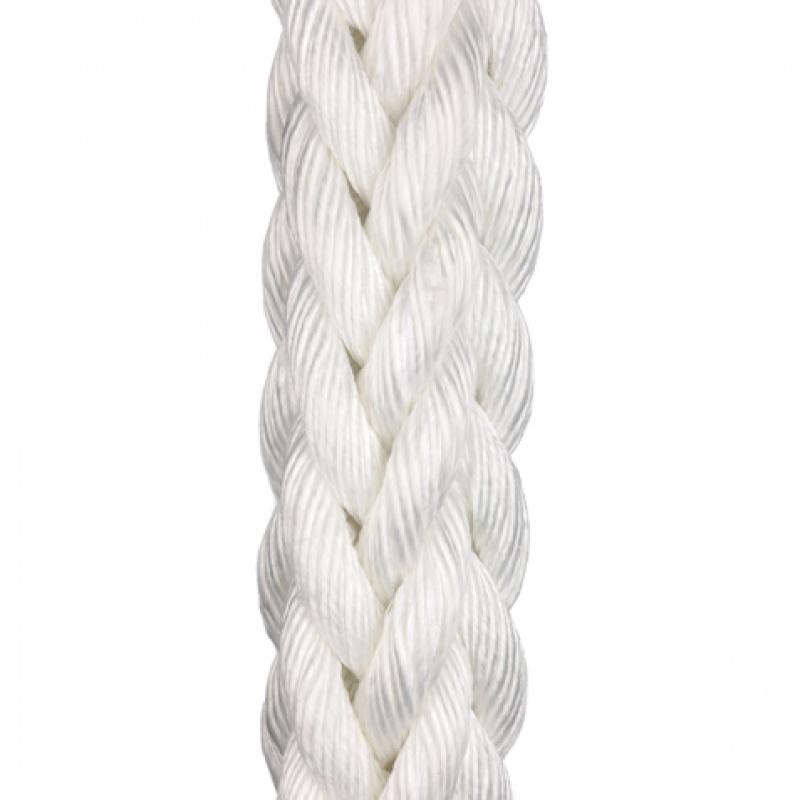

This blended rope combines the best properties of Polyester fiber with our Movline Plus bi-polymer fiber, in a unique 12 strands construction where every single Movline yarn is covered with Polyester, giving it an exceptional wearing resistance and strength with significantly less handling weight than regular polyester ropes.
  • Advantages
    • Exceptional abrasion and wear resistance on H-bitts
    • 18-20 % lighter than regular polyester ropes
    • Less water absorption than an all polyester ropes
    • Flexible and smooth, non kinking and non rotating
  • Applications
    • Mooring lines
    • Anchor lines
    • Tug boat H-Bitt working lines
    • Barge working lines
  • Technical Informations
    • Raw material: Mixed Polyolefin / Polyester
    • Specific Gravity: 1,16 (sinks)
    • Melting Point: 165C / 265C
    • Elongation at % of BS:
    25% . 3,2%
    50% . 6,7%

    Diameter

    Size
    Circ.

    Weight

    Breaking Load

    mm

    Inches

    Inches

    Ktex

    Kg/100m

    lbs/100ft

    Kgf

    lbf

    kN

    24

    1

    3

    319

    31,9

    21,4

    10 911

    24 054

    107

    26

    1 1/32

    3 1/4

    374

    37,4

    25,1

    12 747

    28 101

    125

    28

    1 1/8

    3 1/2

    434

    43,4

    29,2

    14 684

    32 372

    144

    30

    1 1/4

    3 3/4

    498

    49,8

    33,5

    16 723

    36 868

    164

    32

    1 5/16

    4

    566

    56,6

    38

    18 967

    41 814

    186

    36

    1 1/2

    4 1/2

    717

    71,7

    48,2

    23 759

    52 380

    233

    40

    1 5/8

    5

    885

    88,5

    59,5

    29 062

    64 070

    285

    44

    1 3/4

    5 1/2

    1 070

    107

    71,9

    34 874

    76 884

    342

    48

    2

    6

    1 270

    127

    85,3

    41 197

    90 822

    404

    52

    2 1/8

    6 1/2

    1 500

    150

    100,8

    48 029

    105 884

    471

    56

    2 1/4

    7

    1 730

    173

    116,2

    55 371

    122 070

    543

    60

    2 1/2

    7 1/2

    1 990

    199

    133,7

    63 223

    139 380

    620

    64

    2 5/8

    8

    2 270

    227

    152,5

    71 482

    157 589

    701

    68

    2 3/4

    8 1/2

    2 560

    256

    172

    80 150

    176 698

    786


    In accordance to ISO 14686:2004.
    Breaking load values stated shall be reduced by 10% in the case of a rope with eye-spliced terminations.
