Movline Plus

Movline Plus

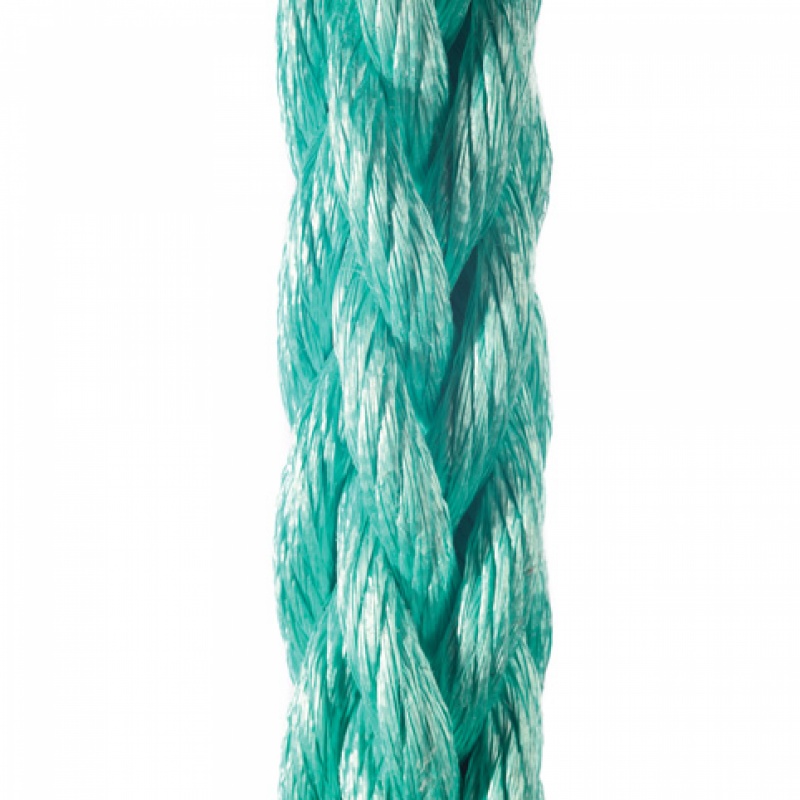

Movline Plus is an extremely strong and high tenacity bi-polymer composite fiber extruded on a custom-built extrusion process. Its gripping capability is enhanced by the outer fuzzy surface developed in use, also protecting the inner fibers against abrasion. The 12 strands round plait construction improves its already good wear resistance.
  • Advantages
    • High abrasion resistance
    • High strength floating line
    • No water absorption
    • Good UV resistance
    • Flexible, non kinking and non rotating construction
  • Applications
    • Mooring lines
    • Anchor lines
    • Tug and Towing lines
  • Tecnhical Informations
    • Raw material: Mixed Polyolefin
    • Specific Gravity: 0,94 (floats)
    • Melting Point: 165ºC
    • Elongation at % of BS:
    25% …. 2,8%
    50% …. 5,5%

    DiameterSize
    Circ.    		WeightBreaking Load
    mminchesinchesktexKg/100mlbs/100ftkgflbfkN
    241326126,117,510.60523.380104,0
    261 1/323 1/430630,620,612.33927.202121,0
    281 1/83 1/235535,523,914.17431.248139,0
    301 1/43 3/440840,827,416.11235.519158,0
    321 5/16446446,431,218.25340.240179,0
    361 1/24 1/258758,739,422.84250.357224,0
    401 5/8572572,548,727.94061.597274,0
    441 3/45 1/287787,758,933.34573.512327,0
    48261040104,069,939.25986.550385,0
    522 1/86 1/21220122,082,045.683100.713448,0
    562 1/471420142,095,452.414115.550514,0
    602 1/27 1/21630163,0109,559.450131.062583,0
    642 5/881860186,0125,066.996147.698657,0
    682 3/48 1/22100210,0141,175.153165.682737,0

    In accordance to ISO 10572-2009
    Breaking load values stated shall be reduced by 10 % in the case of a rope with eye-spliced terminations.
