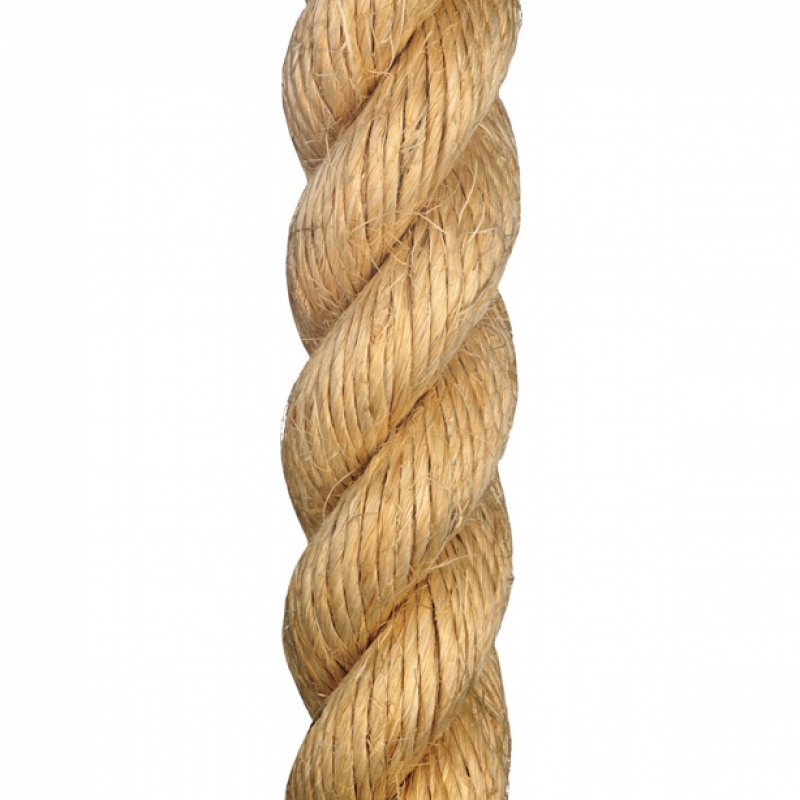

Sisal
Traditional ropes made from a blend of selected natural fibers, with good abrasion resistance and low elongation, are bio degradable and non-polluting, and are excellent for classic old fashion ships. A special colour treatment can be applied upon request to match natural colour of manila fiber.
-
Advantages
- Low elongation
- Bio degradable, non polluting
- Do not slip
- Good UV resistance
-
Applications
- Classic Vessels
- Tie-up lines
-
Technical Informations
- Raw material: Sisal
- Specific Gravity: 1,38
- Melting Point: 165ºC
- Elongation at % of BS:
25% …. 4,0%50% …. 7,0%Diameter Size Weight Breaking Load Circ. mm inches inches ktex Kg/100m lbs/100ft kgf lbf kN 4 5/32 1/2 15 1,5 1 153 337 1,5 5 3/16 5/8 17,3 1,7 1,2 186 409 1,8 6 1/4 3/4 24,9 2,5 1,7 263 580 2,6 8 5/16 1 44,4 4,4 3 459 1.012 4,5 10 3/8 1 1/4 69,3 6,9 4,7 707 1.558 6,9 12 1/2 1 1/2 99,8 10 6,7 1.005 2.217 9,9 14 9/16 1 3/4 136 13,6 9,1 1.356 2.990 13,3 16 5/8 2 177 17,7 11,9 1.754 3.867 17,2 18 3/4 2 1/4 225 22,5 15,1 2.203 4.856 21,6 20 13/16 2 1/2 277 27,7 18,6 2.702 5.957 26,5 22 7/8 2 3/4 335 33,5 22,5 3.253 7.171 31,9 24 1 3 399 39,9 26,8 3.855 8.498 37,8 26 1 1/32 3 1/4 468 46,8 31,4 4.507 9.936 44,2 28 1 1/8 3 1/2 543 54,3 36,5 5.201 11.465 51 30 1 1/4 3 3/4 624 62,4 41,9 5.945 13.106 58,3 32 1 5/16 4 710 71 47,7 6.730 14.837 66 34 1 11/32 4 1/4 804 80,4 54 7.546 16.636 74 36 1 1/2 4 1/2 898 89,8 60,3 8.453 18.636 82,9 38 1 9/16 4 3/4 1004 100,4 67,5 9.381 20.682 92 40 1 5/8 5 1110 111 74,6 10.401 22.930 102 44 1 3/4 5 1/2 1340 134 90 12.441 27.426 122 48 2 6 1600 160 107,5 14.786 32.597 145 52 2 1/8 6 1/2 1870 187 125,7 17.233 37.992 169 56 2 1/4 7 2170 217 145,8 19.885 43.837 195 60 2 1/2 7 1/2 2490 249 167,3 22.740 50.132 223 64 2 5/8 8 2840 284 190,8 25.799 56.876 253 68 2 3/4 8 1/2 3200 320 215 28.960 63.845 284 72 2 7/8 9 3590 359 241,2 32.325 71.264 317 80 3 1/4 10 4440 444 298,3 39.667 87.450 389 90 3 9/16 11 1/8 5160 516 346,7 45.887 101.163 450 In accordance to ISO 1181-2004Above breaking loads are for 3 strand ropes. On 4 strand ropes, breaking loads are approximately 10% lower.
